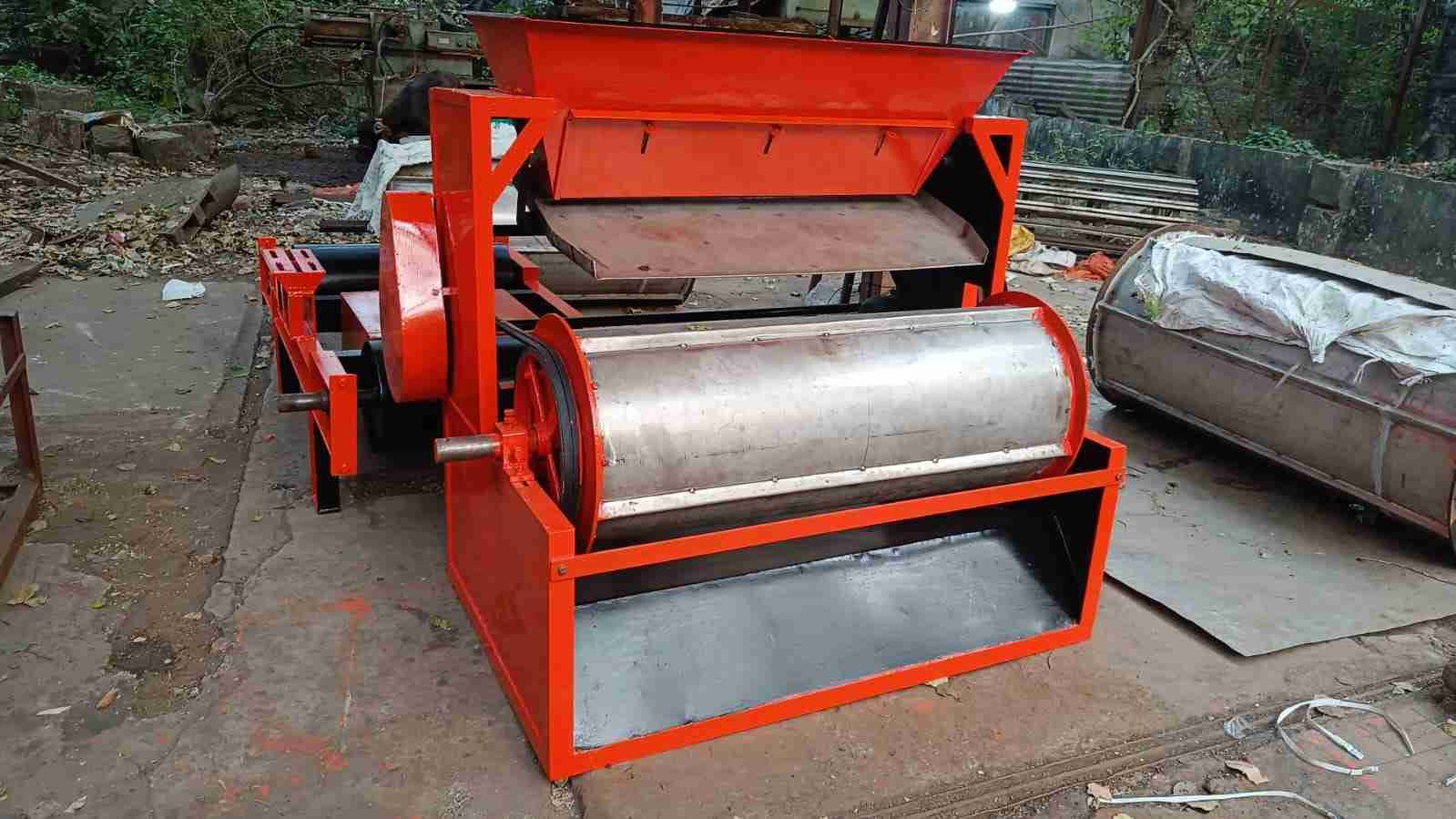

Single Drum Magnetic Separator Machine

Drum Type Magnetic Separator Drum Type Magnetic Separator In Stock

The Single Drum Magnetic Separator Machine is an efficient and cost-effective industrial solution designed to extract ferrous contaminants from dry, granular, or powder bulk materials.

Engineered for continuous 24/7 operation, material is fed uniformly across the rotating stainless steel drum shell while internal stationary permanent magnets hold magnetic particles against the shell until they rotate past the magnetic field into a dedicated discharge chute, effectively separating clean material from tramp iron.

Key Features

High-intensity magnetic drum for maximum iron extraction efficiency
Continuous automatic discharge of ferrous impurities without halting flow
Heavy-duty stainless steel (SS 304 / SS 316) drum shell construction
Zero energy consumption for permanent magnet field generation
Compact, robust build with minimal maintenance and low wear
Available in custom drum diameters and face widths to match plant throughput

Technical Specifications

Applications: Mineral & ore processing, Plastic granules & regrind, Food & grain cleaning, Ceramic & glass raw materials, Chemical powders & fertilizers, E-waste & scrap metal recycling

Magnetic System: High Intensity Rare Earth NdFeB / Anisotropic Ferrite

Drum Shell: Non-magnetic Grade 304 / 316 Stainless Steel

Operation Mode: Continuous Automatic Material Separation

Drive System: Geared motor with speed control capability

Heavy-duty industrial grade construction

Energy-efficient operation for reduced costs

Backed by Arup Enterprise 24/7 after-sales service

Genuine spare parts always available
